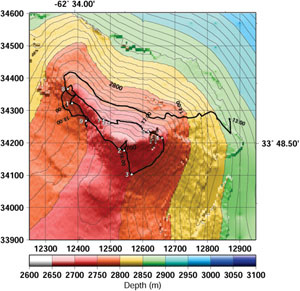

This map was created by ABE, which has sonar capability known as SM2000 that can generate very high-resolution images of small areas. Note that each of the grid lines represents a spacing of 100 meters – a very different scale from all the previous maps. Scientists took this map with them on a recent dive as a navigation tool. The black line indicates the path the sub actually took.
